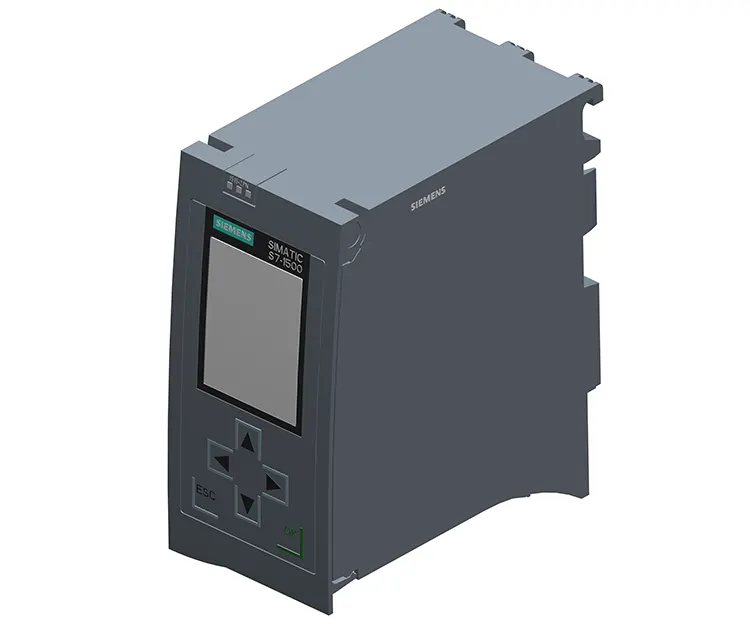

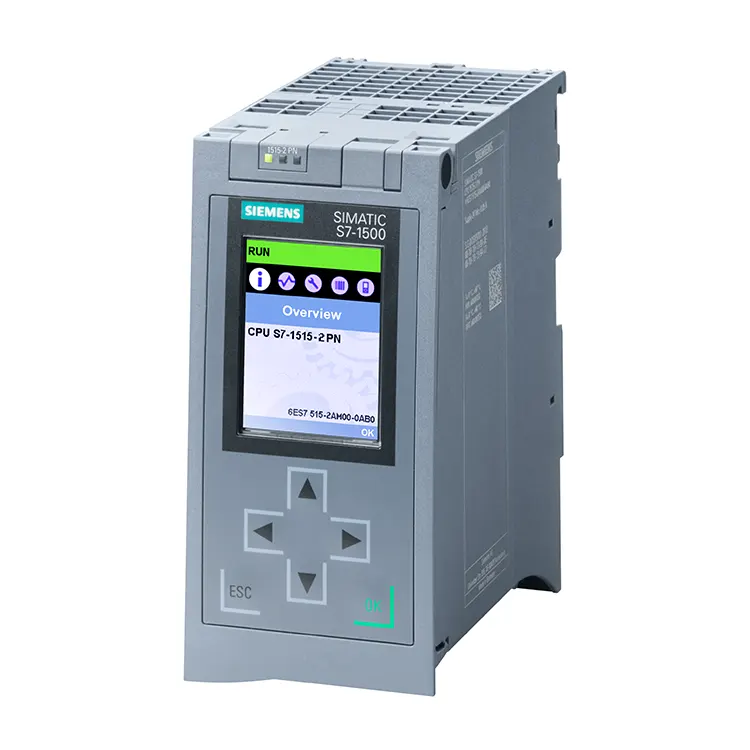

6ES7515-2AM01-0AB0 (CPU 1515-2 PN) Controller Integrated Parameters:

1. Digital Input/Output (I/O)
   • Supports flexible I/O configuration via expansion modules, with a maximum expandable capacity of 32DI/32DQ (specific point count depends on the selected module).
   • All extended digital modules come with pre-wired connectors, eliminating the need for separate procurement by customers.
2. Analog Input/Output (AI/AQ)
   • Requires expansion analog modules to implement, for example:
     • Integrated 4 channels of analog input (AI) and 1 channel of analog output (AQ) (specific signal types depend on module selection).
     • Supports voltage and current signal measurement and output, meeting basic analog signal processing requirements.
3. High-Speed Counting Function
   • Supports high-speed counting function, which can be achieved through expansion technology modules (such as TM Count modules).
   • The specific counting frequency and channel count depend on the selected module (for example, some modules support a maximum counting frequency of 400KHz).

4. Pulse Train Output (PTO)
   • Integrated PTO function, supporting direct connection to drive devices (such as servo motors, stepper motors).
   • Multi-axis motion control can be realized through expansion modules or integrated technology objects, with the specific axis count and output frequency depending on the configuration.
5. Communication and Networking
   • Integrated with 2 PROFINET interfaces, supporting real-time Ethernet communication (PROFINET IRT/RT).
   • Supports open Ethernet communication (TCP/IP, UDP, ISO-on-TCP), enabling seamless integration with other devices or systems.
6. Motion Control Function
   • Integrated motion control function, supporting speed control axes, positioning axes, and synchronous operations.
   • Basic motion control tasks can be accomplished without additional modules (complex applications require expansion technology modules).
7. Diagnostics and Maintenance
   • Integrated Web server, supporting remote monitoring and diagnostics.
   • Provides system diagnostics, enabling real-time tracking of CPU tags and module statuses.
8. Information Security
   • Integrated information security features, supporting access control and data encryption to maximize the protection of intellectual property and investments.

Key Differences Compared to 1511C/1512C:

• I/O and Analog Integration: The 1511C/1512C directly integrate I/O and analog interfaces, whereas the 6ES7515-2AM01-0AB0 requires expansion modules to achieve similar functionality.
• High-Speed Counting and PTO: Both support high-speed counting and PTO functions, but specific performance metrics (such as channel count, frequency) depend on the configuration of expansion modules.
• Positioning and Application Scenarios: The 6ES7515-2AM01-0AB0 is positioned as a high-performance CPU, suitable for medium to large-scale automation systems, emphasizing scalability and network communication capabilities; the 1511C/1512C are positioned as compact CPUs, suitable for small to medium-scale applications, emphasizing cost-effectiveness and integration.

For further details on specific module parameters or application scenarios, please refer to Siemens' official technical documentation or contact technical support.
