Siemens Original PLC1500 Central processing unit 6ES7511-1AK02-0AB0 150KB program
6ES7511-1AK02-0AB0
6ES75111AK020AB0 Components

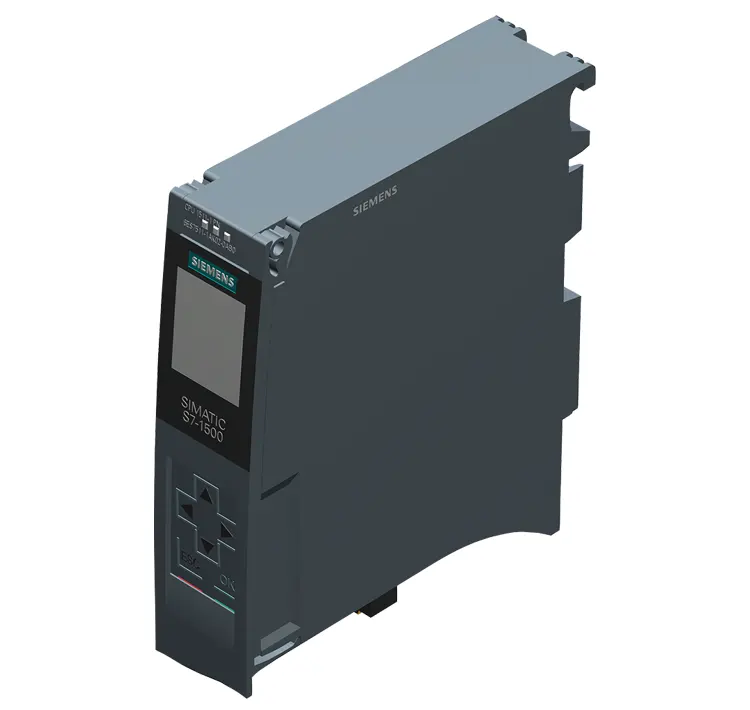

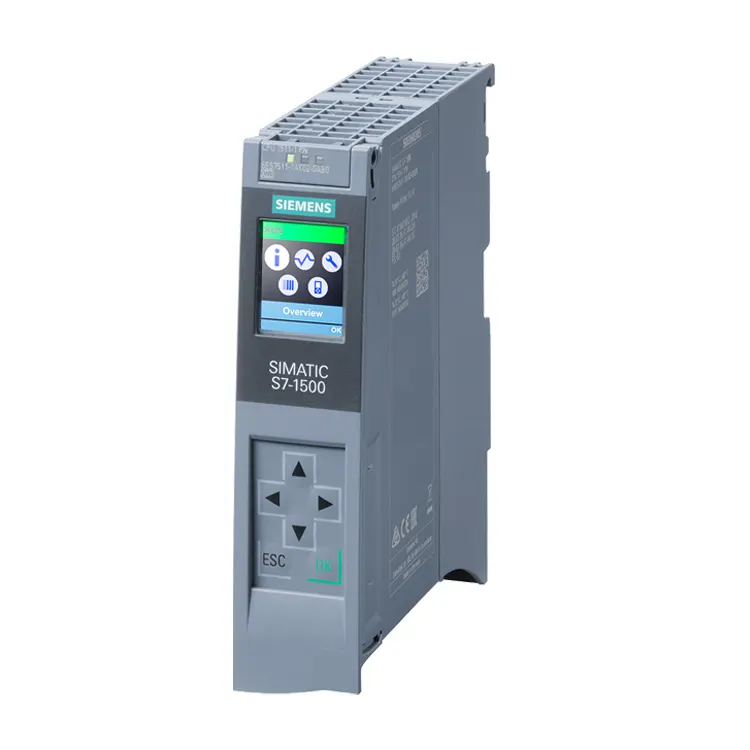

The Siemens 6ES7511-1AK02-0AB0 is a Central Processing Unit (CPU) with a working memory of 150 KB and a data memory of 1 MB. Spare part SIMATIC S7-1500, 6ES7511-1AK02-0AB0, CPU 1511-1 PN, central drive with 150 KB working memory for the program and 1 Mbyte for data, 1st interface: PROFINET IRT with 2-port switch, 60ns bit performance, SIMATIC Memory Card required
Overview
This entry-level CPU from the S7-1500 controller product series is suitable for applications with moderate requirements in terms of program scope and processing speed. It can be used as a centralized controller on production lines with both centralized and distributed I/O.
Interfaces
- PROFINET IO IRT Interface with 2-Port Switch: It offers a bit performance of 60 ns and requires a SIMATIC memory card.
- PROFINET I/O Controller: Enables the operation of distributed I/O over PROFINET.
- PROFINET Smart Device: Allows the CPU to be connected as a PROFINET device under either a SIMATIC or non-Siemens PROFINET I/O controller.
Additional Features
- OPC UA Server (Data Access): As a runtime option, it facilitates easy connection of the SIMATIC S7-1500 to third-party devices/systems.
- Isochronous Real-Time (IRT) Mode: Supports precise timing synchronization for demanding automation tasks.
- Integrated Motion Control Functionality: Capable of controlling speed-controlled and positioning axes, with support for external encoders, cams/cam tracks, and probes for diagnostic purposes.
- Integrated Web Server: Includes the option to create user-defined web pages for remote monitoring and configuration.
Note：A SIMATIC memory card is required to operate the CPU.
