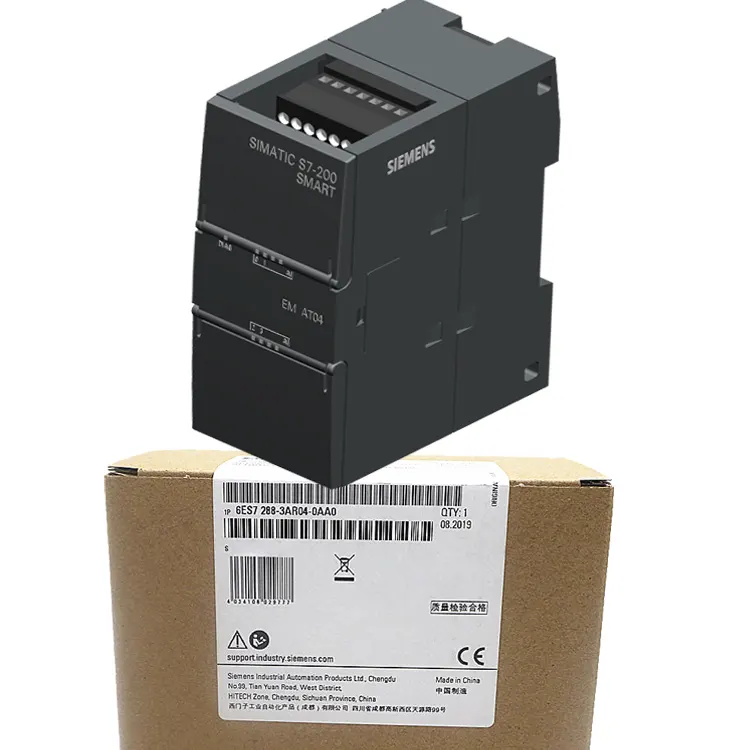

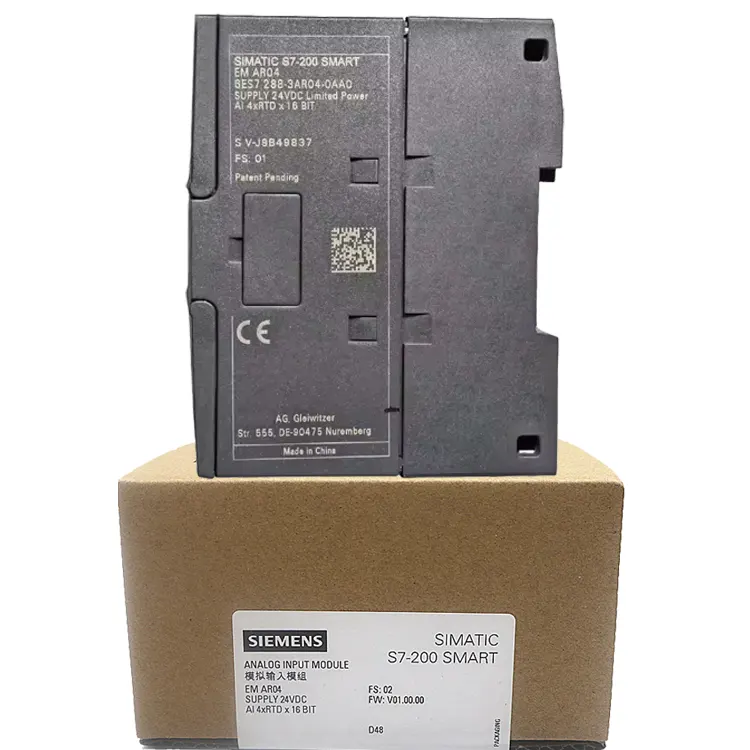

I. 6ES7288-3AR04-0AA0, S7-200 SMART, Analog Input SM AI04, 4 AI
The SIMATIC S7-200 SMART, Analog Input SM AI04 (4 AI) is a high-precision RTD/thermocouple input module for the Siemens S7-200 SMART series. Specifically designed for analog signal processing such as temperature monitoring, it is ideal for industrial automation scenarios requiring stringent measurement accuracy.

II. Comparison with Similar Models

1. 6ES7288-3AR04-0AA0 (Official Model)
   • Type: RTD temperature sensor input module
   • Channels: 4 (supports PT100/thermocouples)
   • Accuracy: ±0.1°C temperature measurement
   • Applications: Temperature monitoring in plastic machinery, tension control in textile equipment, and other high-precision analog input scenarios.
   •
2. 6ES7288-2DR32-0AA0 (Digital I/O Module)
   • Type: Digital input/output module
   • Channels: 16 inputs + 16 outputs
   • Applications: General-purpose automation equipment (e.g., packaging machinery, logistics sorting systems).
   • Advantage: Double the I/O capacity of the 6AR04 but lacks analog processing capabilities.
3. 6ES7288-3AM06-0AA0 (Analog Hybrid Module)
   • Type: Analog input/output hybrid module
   • Channels: 4 inputs + 2 outputs (supports voltage/current signals)
   • Applications: Scenarios requiring simultaneous sensor signal processing and actuator control (e.g., food processing lines).
   • Advantage: Offers 2 additional analog outputs compared to the 6AR04.


III. Selection Recommendations

• For RTD temperature sensor input: 6ES7288-3AR04-0AA0
• For expanded digital I/O:
  • 6ES7288-2DR32-0AA0 (16 inputs/16 outputs, suitable for production-line control)
  • 6ES7288-2DR16-0AA0 (8 inputs/8 outputs, suitable for standalone equipment)
• For analog processing:
  • 6ES7288-3AE04-0AA0 (4 analog inputs, ideal for temperature/pressure monitoring)
  • 6ES7288-3AM06-0AA0 (4 inputs/2 outputs, suitable for actuator control scenarios)


This structured approach ensures precise module selection based on specific application requirements. This article provides a technical analysis of three core modules in Siemens' S7-200 SMART series—6ES7288-3AR04-0AA0 (High-Precision Temperature Input), 6ES7288-2DR32-0AA0 (Digital I/O Expansion), and 6ES7288-3AM06-0AA0 (Analog Hybrid Module). It evaluates their technical specifications, industry compatibility, and cost-effectiveness, offering actionable insights for industries such as plastic machinery, logistics sorting, and food processing. A modular selection framework is introduced to help engineers align modules with specific application requirements while avoiding common pitfalls in automation system design.
