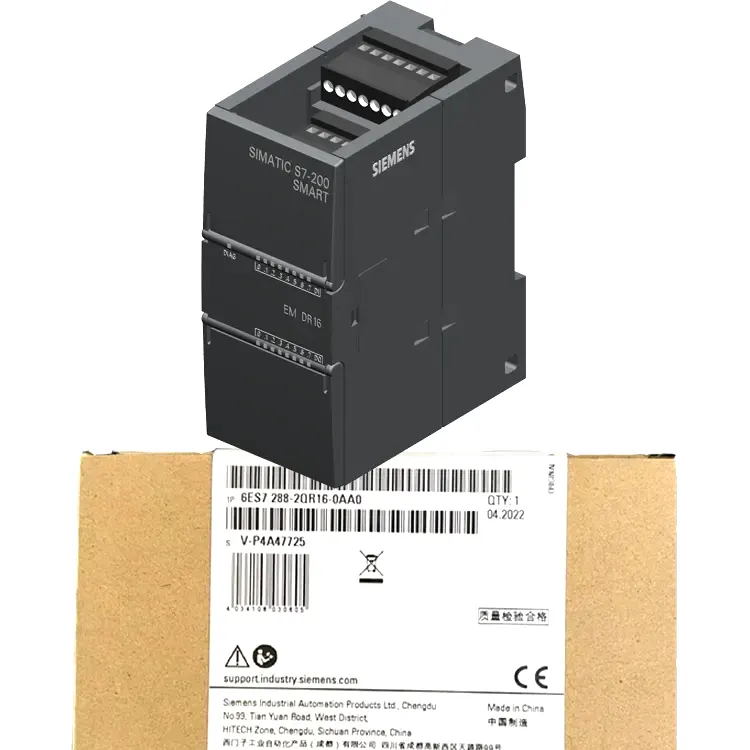

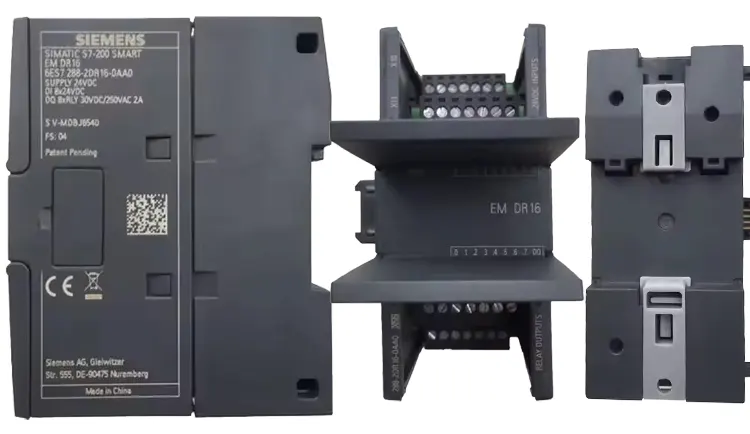

Product Description for Siemens PLC Module 6ES7288-2DR16-0AA0
Siemens PLC S7-200SMART, Digital output module：
S7-200 SMART,Digital I/O SM DR16, 8DI/8DO
SIMATIC S7-200 SMART, Digital I/O SM DR16, 8DI/8DO, 8 DI 24 V DC, Sink/Source, 8 DO, relay 2 A
Siemens 6ES7288-2DR08-0AA0 is a high-performance digital output module designed specifically for industrial automation control systems, widely used in various fields such as manufacturing, energy, and transportation. This module adopts relay output mode, which can provide 8 independent output channels, each channel can output 2A current, suitable for situations requiring large current loads.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6ES7288-2DR16-0AA0 |
| Brand | Siemens |
| Series | SIMATIC S7-200 SMART |
| Input Channels | 8 DI (Digital Input) |
| Output Channels | 8 DO (Digital Output) |
| Output Type | Relay Output (2A per point) |
| Power Supply | 24V DC |
| Mounting Type | DIN Rail |
| Dimensions | 125 x 100 x 81 mm (W x H x D) |
| Weight | 440 g |
| Current Consumption | 150 mA at 240 V AC, 250 mA at 120 V AC |
| Power Loss | 18 W |
| Packaging | Box Packing |
Key Features
- Digital Input and Output: The module features 8 digital input points and 8 digital output points, allowing for the control of various industrial devices such as sensors, actuators, and relays.
- Relay Output: The output is of the relay type, capable of handling up to 2A per point, which makes it suitable for driving high-power devices.
- Power Supply: It requires a 24V DC power supply, which is standard in many industrial automation systems.
- Mounting Type: The module is designed for DIN rail mounting, enabling easy installation in standard PLC cabinets.
- Programmability: As part of the S7-200 SMART series, it can be programmed using the SIMATIC S7-200 software, allowing for seamless integration with other PLC components and systems.
- Environmental Tolerance: The module is built to withstand harsh industrial environments, ensuring long-term reliability and performance.
- Terminal block compatibility:
| S7-200 SMART Module (Product Number) | Terminal Block Product Number | Terminal Block Description |
|---|---|---|
| EM 16-Point Digital I/O (EM DT32) (6ES7288-2DT32-0AA0) |
6ES7292-1AG40-0XA0 | 7-pin, tinned, with key (right side) |
| EM 16-Point Digital Input/16-Point Relay Output (EM DR32) (6ES7288-2DR32-0AA0) |
6ES7292-1AL30-0XA0 6ES7292-1AL40-0XA0 |
11-pin, tinned 11-pin, tinned, with key |
| EM 4-Point Analog Input (EM AE04) (6ES7288-3AE04-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM 8-Point Analog Input (EM AE08) (6ES7288-3AE08-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM 2-Point Analog Output (EM AQ02) (6ES7288-3AQ02-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM 4-Point Analog Output (EM AQ04) (6ES7288-3AQ04-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM 2-Point Analog Input/1-Point Analog Output (EM AM03) (6ES7288-3AM03-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM 4-Point Analog Input/2-Point Analog Output (EM AM06) (6ES7288-3AM06-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM RTD 2x16-bit (EM AR02) (6ES7288-3AR02-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM RTD 4x16-bit (EM AR04) (6ES7288-3AR04-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM TC 4x16-bit (EM AT04) (6ES7288-3AT04-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
| EM PROFIBUS DP SMART (EM DP01) (6ES7288-7DP01-0AA0) |
6ES7292-1BG30-0XA0 | 7-pin, gold-plated |
6ES7288-2DR16-0AA0: Ideal for the Following Customer Types and Industries
1.Industrial Automation Control: Widely used in industrial automation systems, especially for scenarios requiring simultaneous digital input/output handling (e.g., production line control, robotics).
2. Machine/Equipment Control: Suitable for controlling various machines (e.g., injection molding, packaging, printing), which often demand complex logic and real-time responsiveness.
3. Building Power Distribution: Used in building automation systems to monitor and control electrical devices (e.g., lighting, HVAC systems).
4. Smart Building Systems: Integrates with other smart devices in intelligent buildings for comprehensive environmental monitoring and management.
5. Manufacturing: Tailored for automated production lines in industries like automotive and electronics, where reliability and stability are critical.
| Product Code | Description |
|---|---|
| 6ES7288-2DE08-0AA0 | S7-200 SMART, EM DE08, Digital Input Module, 8x24 VDC Inputs |
| 6ES7288-2DE16-0AA0 | S7-200 SMART, EM DE16, Digital Input Module, 16x24 VDC Inputs |
| 6ES7288-2DR08-0AA0 | S7-200 SMART, EM DRO8, Digital Output Module, 8xRelay Outputs |
| 6ES7288-2DR16-0AA0 | S7-200 SMART, EM DR16, Digital Input/Output Module, 8x24 VDC Inputs/8xRelay Outputs |
| 6ES7288-2DR32-0AA0 | S7-200 SMART, EM DR32, Digital Input/Output Module, 16x24 VDC Inputs/16xRelay Outputs |
| 6ES7288-2DT08-0AA0 | S7-200 SMART, EM DTO8, Digital Output Module, 8x24 VDC Outputs |
| 6ES7288-2DT16-0AA0 | S7-200 SMART, EM DT16, Digital Input/Output Module, 8x24 VDC Inputs/8x24 VDC Outputs |
| 6ES7288-2DT32-0AA0 | S7-200 SMART, EM DT32, Digital Input/Output Module, 16x24 VDC Inputs/16x24 VDC Outputs |
| 6ES7288-2QR16-0AA0 | S7-200 SMART, EM QR16, Digital Output Module, 16xRelay Outputs |
| 6ES7288-2QT16-0AA0 | S7-200 SMART, EM QT16, Digital Output Module, 16x24 VDC Outputs |
| 6ES7288-3AE04-0AA0 | S7-200 SMART, EM AE04, Analog Input Module, 4 Inputs |
| 6ES7288-3AE08-0AA0 | S7-200 SMART, EM AE08, Analog Input Module, 8 Inputs |
| 6ES7288-3AM03-0AA0 | S7-200 SMART, EM AM03, Analog Input/Output Module, 2 Inputs/1 Output |
| 6ES7288-3AM06-0AA0 | S7-200 SMART, EM AM06, Analog Input/Output Module, 4 Inputs/2 Outputs |
| 6ES7288-3AQ02-0AA0 | S7-200 SMART, EM AQ02, Analog Output Module, 2 Outputs |
| 6ES7288-3AQ04-0AA0 | S7-200 SMART, EM AQ04, Analog Output Module, 4 Outputs |
| 6ES7288-3AR02-0AA0 | S7-200 SMART, EM ARO2, Resistance Thermometer Input Module, 2 Channels |
| 6ES7288-3AR04-0AA0 | S7-200 SMART, EM ARO4, Resistance Thermometer Input Module, 4 Channels |
| 6ES7288-3AT04-0AA0 | S7-200 SMART, EM ATO4, Thermocouple Input Module, 4 Channels |
| 6ES7288-5CM01-0AA0 | S7-200 SMART, SB CM01, Communication Expansion Signal Board, RS485 Interface, 9-pole D-sub (pin) |
| 6ES7288-5DT04-0AA0 | S7-200 SMART, SB DT04, Digital Output Expansion Signal Board, 4x24 VDC Outputs |
| 6ES7288-5AE01-0AA0 | S7-200 SMART, SB AE01, Analog Expansion Signal Board, 1 Analog Input |
| 6ES7288-5AQ01-0AA0 | S7-200 SMART, SB AQ01, Analog Expansion Signal Board, 1 Analog Output |
| 6ES7288-7DP01-0AA0 | S7-200 SMART, EM DP01, Profibus-DP Slave Expansion Module |
| 6ES7288-5BA01-0AA0 | S7-200 SMART, SB BA01, Battery Backup Expansion Signal Board |
| 6ES7288-4RM60-0AA0 | S7-200SMART, EM RM60, PROFINET Interface Module, IM60 (Max. 6 I/O Modules), 1x Integrated RJ45 Socket, Onboard I/O: 36 DI 24 V DC; 24 DO 24 V DC |
