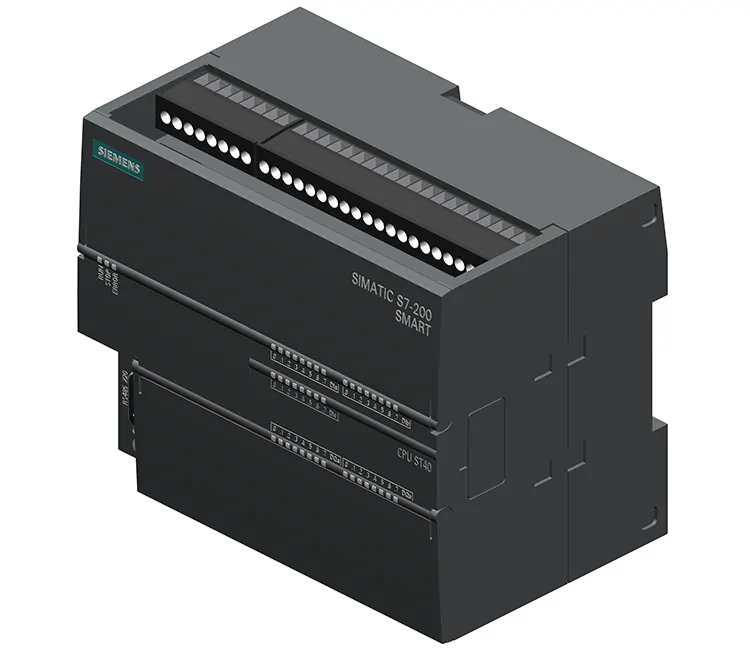

High speed pulse output Siemens PLC CPU 6ES7288-1ST40-0AA0
Siemens 6ES7288-1ST40-0AA0
1.Data and info.:
S7-200 SMART, CPU ST40, CPU, DC/DC/DC, 24DI/16DO
SIMATIC S7-200 SMART, CPU ST40, CPU, DC/DC/DC, onboard I/O: 24 DI 24 V DC; 16 DO 24 V DC; power supply: DC 20.4-28.8V DC, program/data memory 40 KB
A- Features
-------*Scalability: modular design, able to add communication and analog extension modules (e.g., EM AE04, EM DP01, etc.).
-------*Programming support: Programs must be downloaded using an Ethernet port or a USB-PPI cable (6ES7901-3DB30-0XA0).
-------*Support software (V2.3 and higher) for STEP 7-Micro/WIN SMART.
-------* Mode switching: The RS485 interface has the ability to switch between PPI and free port modes (programming instructions or a USB-PPI connector are required).

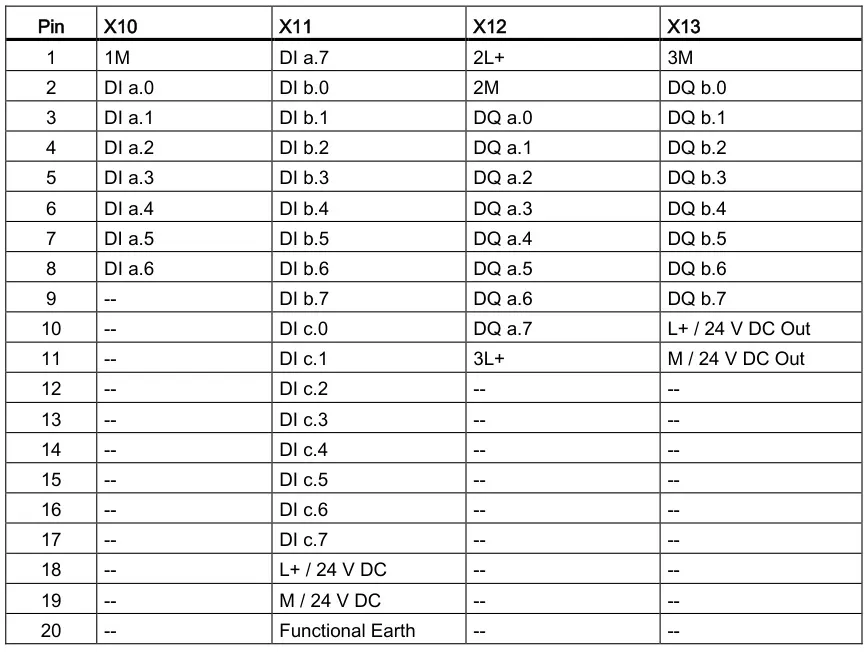

B- : Connector pin locations for CPU ST40 DC/DC/DC (6ES7288-1ST40-0AA0):
C- : Differences from economical CPUs (CR series)
-------*Standard (ST) supports extension modules, but Economy (CR) only provides body I/O.
-------*Distinctions from economical CPUs (CR series)The CR series uses RS485 interfaces for programming and lacks Ethernet connectors.
-------*Firmware version: V1.x to V5.x are the different versions that must match software compatibility.

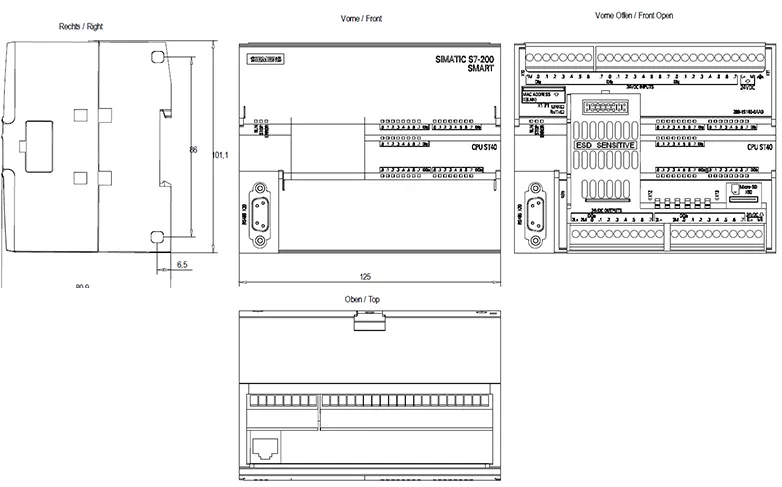

D- Drawing:

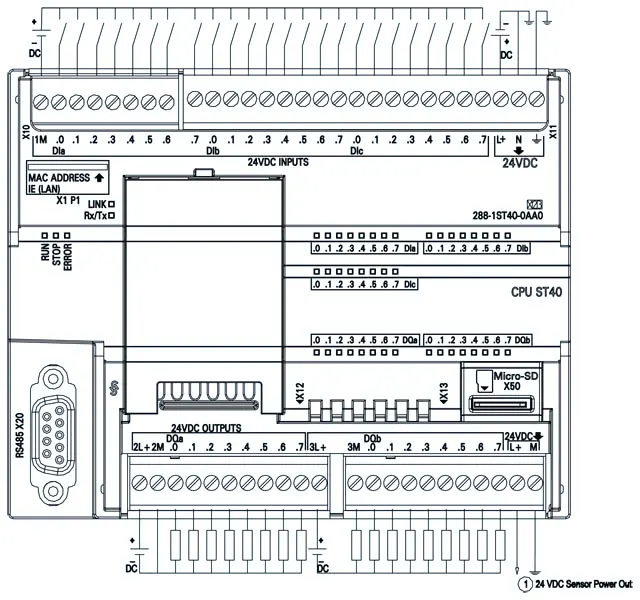

E- IO Wiring Diagram

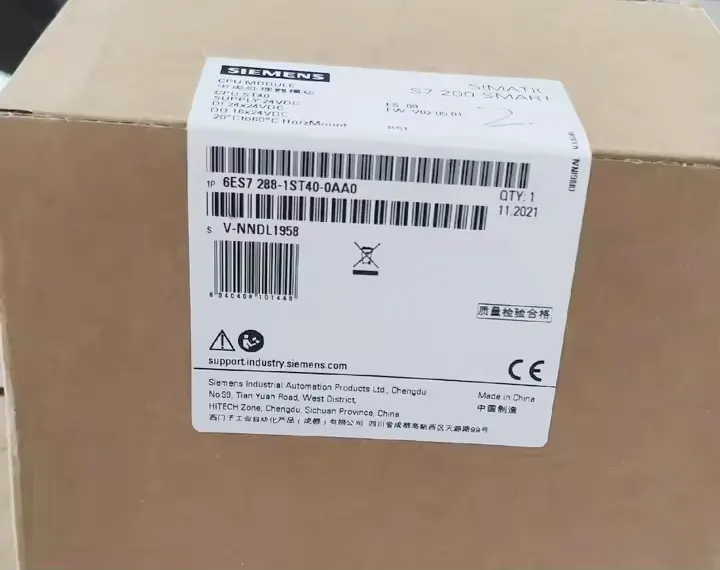

2. Package:
| Delivery information | |
| Export Control Regulations | ECCN : EAR99H / AL : N |
| Factory Production Time | 50 Day/Days |
| Net Weight (kg) | 0.490 Kg |
| Packaging Dimension | 13.40 x 15.70 x 11.30 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
3. PDF Download:
6ES7288-1ST40-0AA0 Manualbook
4. RFQ:
1. Warranty: 1 year.
2. Condition: Brand new
3. Lead Time: 3-5 business days (ready stock).
4. Shipping Options: We support DHL, FedEx, UPS, TNT, EMS, and specialized logistics services.
5. Payment Methods: T/T, PayPal, Alipay, WeChat Pay, and other secure payment platforms.
Additional Terms:
• "MOQ: 1 pieces for OEM/ODM orders."
• "Post-Sales Service: Lifetime technical consultation & free repair/replacement for quality issues within warranty."
5. S7-200 SMART Module List with Descriptions
| Product Code | Description |
|---|---|
| 6ES7288-2DE08-0AA0 | S7-200 SMART, EM DE08, Digital Input Module, 8x24 VDC Inputs |
| 6ES7288-2DE16-0AA0 | S7-200 SMART, EM DE16, Digital Input Module, 16x24 VDC Inputs |
| 6ES7288-2DR08-0AA0 | S7-200 SMART, EM DRO8, Digital Output Module, 8xRelay Outputs |
| 6ES7288-2DR16-0AA0 | S7-200 SMART, EM DR16, Digital Input/Output Module, 8x24 VDC Inputs/8xRelay Outputs |
| 6ES7288-2DR32-0AA0 | S7-200 SMART, EM DR32, Digital Input/Output Module, 16x24 VDC Inputs/16xRelay Outputs |
| 6ES7288-2DT08-0AA0 | S7-200 SMART, EM DTO8, Digital Output Module, 8x24 VDC Outputs |
| 6ES7288-2DT16-0AA0 | S7-200 SMART, EM DT16, Digital Input/Output Module, 8x24 VDC Inputs/8x24 VDC Outputs |
| 6ES7288-2DT32-0AA0 | S7-200 SMART, EM DT32, Digital Input/Output Module, 16x24 VDC Inputs/16x24 VDC Outputs |
| 6ES7288-2QR16-0AA0 | S7-200 SMART, EM QR16, Digital Output Module, 16xRelay Outputs |
| 6ES7288-2QT16-0AA0 | S7-200 SMART, EM QT16, Digital Output Module, 16x24 VDC Outputs |
| 6ES7288-3AE04-0AA0 | S7-200 SMART, EM AE04, Analog Input Module, 4 Inputs |
| 6ES7288-3AE08-0AA0 | S7-200 SMART, EM AE08, Analog Input Module, 8 Inputs |
| 6ES7288-3AM03-0AA0 | S7-200 SMART, EM AM03, Analog Input/Output Module, 2 Inputs/1 Output |
| 6ES7288-3AM06-0AA0 | S7-200 SMART, EM AM06, Analog Input/Output Module, 4 Inputs/2 Outputs |
| 6ES7288-3AQ02-0AA0 | S7-200 SMART, EM AQ02, Analog Output Module, 2 Outputs |
| 6ES7288-3AQ04-0AA0 | S7-200 SMART, EM AQ04, Analog Output Module, 4 Outputs |
| 6ES7288-3AR02-0AA0 | S7-200 SMART, EM ARO2, Resistance Thermometer Input Module, 2 Channels |
| 6ES7288-3AR04-0AA0 | S7-200 SMART, EM ARO4, Resistance Thermometer Input Module, 4 Channels |
| 6ES7288-3AT04-0AA0 | S7-200 SMART, EM ATO4, Thermocouple Input Module, 4 Channels |
| 6ES7288-5CM01-0AA0 | S7-200 SMART, SB CM01, Communication Expansion Signal Board, RS485 Interface, 9-pole D-sub (pin) |
| 6ES7288-5DT04-0AA0 | S7-200 SMART, SB DT04, Digital Output Expansion Signal Board, 4x24 VDC Outputs |
| 6ES7288-5AE01-0AA0 | S7-200 SMART, SB AE01, Analog Expansion Signal Board, 1 Analog Input |
| 6ES7288-5AQ01-0AA0 | S7-200 SMART, SB AQ01, Analog Expansion Signal Board, 1 Analog Output |
| 6ES7288-7DP01-0AA0 | S7-200 SMART, EM DP01, Profibus-DP Slave Expansion Module |
| 6ES7288-5BA01-0AA0 | S7-200 SMART, SB BA01, Battery Backup Expansion Signal Board |
| 6ES7288-4RM60-0AA0 | S7-200SMART, EM RM60, PROFINET Interface Module, IM60 (Max. 6 I/O Modules), 1x Integrated RJ45 Socket, Onboard I/O: 36 DI 24 V DC; 24 DO 24 V DC |
