6ES7288-1ST20-0AA0 Siemens S7-200 SMART CPU ST20
Siemens 6ES7 288-1SR40-0AA0
1.Data and info.:
S7-200 SMART, CPU ST20, STANDARD CPU, DC/DC/DC, 12DI/8DO
Onboard I/O: 12 DI 24 V DC; 8 DO 24 V DC; power supply: DC 20.4-28.8V DC; program/data memory: 20 KB; SIMATIC S7-200 SMART, CPU ST20, standard CPU, DC/DC/DC
A- Technical Parameter:
6ES7288-1ST20-0AA0 is a standard CPU module that uses a DC/DC/DC power architecture (DC power supply/DC input/transistor output). It is an improved version of the original S7-200 PLC, and, in terms of core control capabilities, it integrates high-speed computing functions, supporting high-speed counters (HSC) and pulse outputs with a maximum frequency of up to 100 kHz, which makes it appropriate for precise motion control scenarios like stepper motors and servo drives.
| Supply Voltage | DC 20.4–28.8 V (Wide voltage range design, adaptable to industrial voltage fluctuations) |
| Digital Inputs (DI) | 12 points, 24V DC input (Supports sinking/sourcing wiring) |
| Digital Outputs (DO) | 8 points, 24V DC transistor output (Maximum current per channel: 0.5A) |
| Output Type | Transistor output (Non-relay type, suitable for high-frequency switching scenarios) |
B- Communication:
It also has strong communication capabilities, including a built-in Ethernet interface that supports TCP/IP communication, allowing direct connection to touch screens, host computers, or other PLCs. Finally, it comes standard with an RS485 interface that is compatible with protocols like Modbus-RTU, USS, and PPI.
| Program Memory | 20 KB (for storing user programs) |
| Data Memory | 12 KB (for variable storage) |
| Processing Speed | Bit operations: 150 ns; Floating-point operations: 3.6 μs |
| High-Speed Counter (HSC) | Supports 6 channels (4 of which can be independently configured) |
| Pulse Output | 2 channels, maximum frequency of 100 kHz |

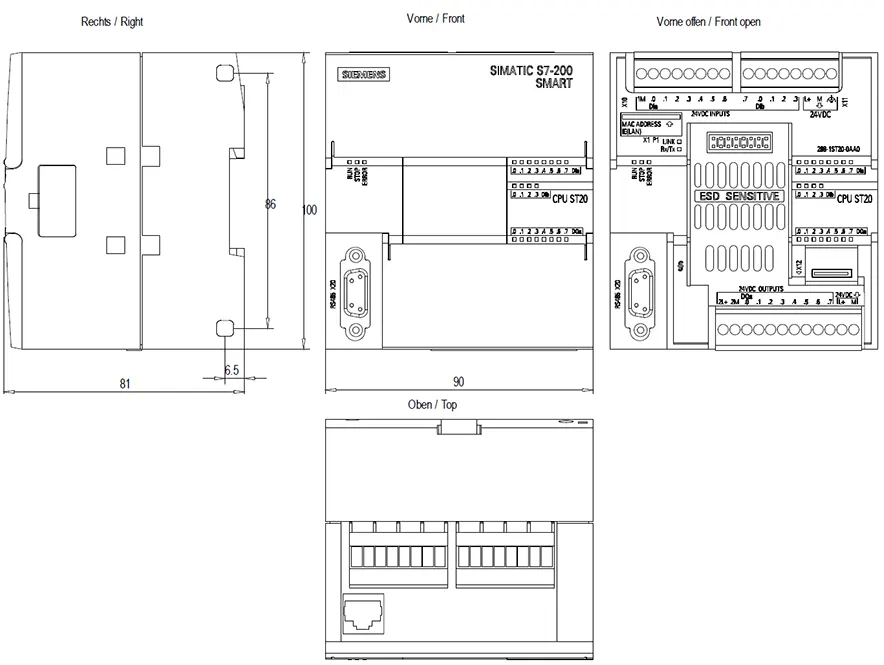

C- Drawing:
D- IO Wiring Diagram
2. Package:
| Delivery information | |
| Export Control Regulations | ECCN : EAR99H / AL : N |
| Factory Production Time | 50 Day/Days |
| Net Weight (kg) | 0.390 Kg |
| Packaging Dimension | 12.30 x 13.40 x 11.30 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
3. PDF Download:
6ES7288-1ST20-0AA0 Siemens S7-200 SMART Manualbook
4. RFQ:
1. Warranty: 1 year.
2. Condition: Brand new
3. Lead Time: 3-5 business days (ready stock).
4. Shipping Options: We support DHL, FedEx, UPS, TNT, EMS, and specialized logistics services.
5. Payment Methods: T/T, PayPal, Alipay, WeChat Pay, and other secure payment platforms.
Additional Terms:
• "MOQ: 1 pieces for OEM/ODM orders."
• "Post-Sales Service: Lifetime technical consultation & free repair/replacement for quality issues within warranty."
5. S7-200 SMART Module List with Descriptions
| Product Code | Description |
|---|---|
| 6ES7288-2DE08-0AA0 | S7-200 SMART, EM DE08, Digital Input Module, 8x24 VDC Inputs |
| 6ES7288-2DE16-0AA0 | S7-200 SMART, EM DE16, Digital Input Module, 16x24 VDC Inputs |
| 6ES7288-2DR08-0AA0 | S7-200 SMART, EM DRO8, Digital Output Module, 8xRelay Outputs |
| 6ES7288-2DR16-0AA0 | S7-200 SMART, EM DR16, Digital Input/Output Module, 8x24 VDC Inputs/8xRelay Outputs |
| 6ES7288-2DR32-0AA0 | S7-200 SMART, EM DR32, Digital Input/Output Module, 16x24 VDC Inputs/16xRelay Outputs |
| 6ES7288-2DT08-0AA0 | S7-200 SMART, EM DTO8, Digital Output Module, 8x24 VDC Outputs |
| 6ES7288-2DT16-0AA0 | S7-200 SMART, EM DT16, Digital Input/Output Module, 8x24 VDC Inputs/8x24 VDC Outputs |
| 6ES7288-2DT32-0AA0 | S7-200 SMART, EM DT32, Digital Input/Output Module, 16x24 VDC Inputs/16x24 VDC Outputs |
| 6ES7288-2QR16-0AA0 | S7-200 SMART, EM QR16, Digital Output Module, 16xRelay Outputs |
| 6ES7288-2QT16-0AA0 | S7-200 SMART, EM QT16, Digital Output Module, 16x24 VDC Outputs |
| 6ES7288-3AE04-0AA0 | S7-200 SMART, EM AE04, Analog Input Module, 4 Inputs |
| 6ES7288-3AE08-0AA0 | S7-200 SMART, EM AE08, Analog Input Module, 8 Inputs |
| 6ES7288-3AM03-0AA0 | S7-200 SMART, EM AM03, Analog Input/Output Module, 2 Inputs/1 Output |
| 6ES7288-3AM06-0AA0 | S7-200 SMART, EM AM06, Analog Input/Output Module, 4 Inputs/2 Outputs |
| 6ES7288-3AQ02-0AA0 | S7-200 SMART, EM AQ02, Analog Output Module, 2 Outputs |
| 6ES7288-3AQ04-0AA0 | S7-200 SMART, EM AQ04, Analog Output Module, 4 Outputs |
| 6ES7288-3AR02-0AA0 | S7-200 SMART, EM ARO2, Resistance Thermometer Input Module, 2 Channels |
| 6ES7288-3AR04-0AA0 | S7-200 SMART, EM ARO4, Resistance Thermometer Input Module, 4 Channels |
| 6ES7288-3AT04-0AA0 | S7-200 SMART, EM ATO4, Thermocouple Input Module, 4 Channels |
| 6ES7288-5CM01-0AA0 | S7-200 SMART, SB CM01, Communication Expansion Signal Board, RS485 Interface, 9-pole D-sub (pin) |
| 6ES7288-5DT04-0AA0 | S7-200 SMART, SB DT04, Digital Output Expansion Signal Board, 4x24 VDC Outputs |
| 6ES7288-5AE01-0AA0 | S7-200 SMART, SB AE01, Analog Expansion Signal Board, 1 Analog Input |
| 6ES7288-5AQ01-0AA0 | S7-200 SMART, SB AQ01, Analog Expansion Signal Board, 1 Analog Output |
| 6ES7288-7DP01-0AA0 | S7-200 SMART, EM DP01, Profibus-DP Slave Expansion Module |
| 6ES7288-5BA01-0AA0 | S7-200 SMART, SB BA01, Battery Backup Expansion Signal Board |
| 6ES7288-4RM60-0AA0 | S7-200SMART, EM RM60, PROFINET Interface Module, IM60 (Max. 6 I/O Modules), 1x Integrated RJ45 Socket, Onboard I/O: 36 DI 24 V DC; 24 DO 24 V DC |
