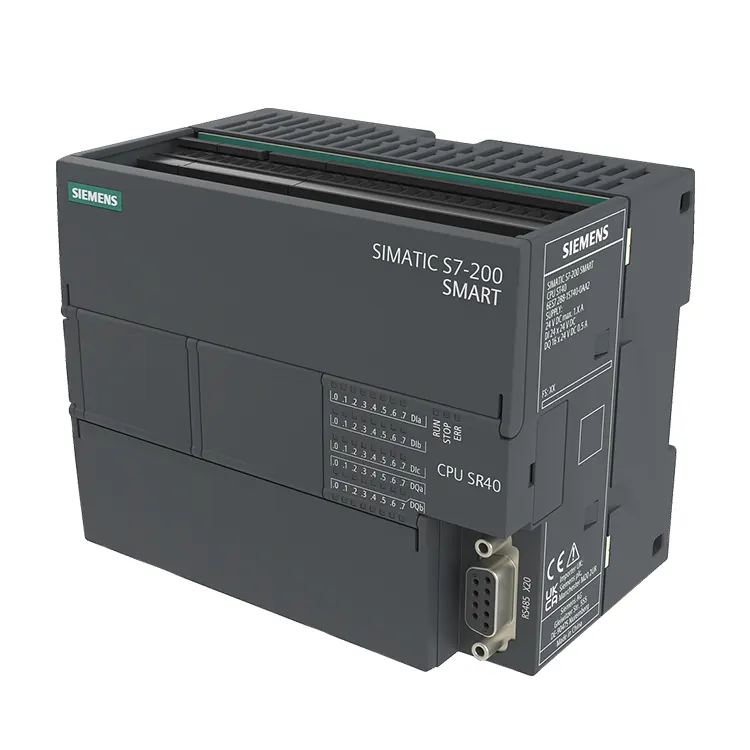

Siemens 6ES7288-1SR40-0AA2 CPU Module V3.0 Double Network Ports
SMART PLC Module (Double Network Ports)
6ES7288-1SR40-0AA2, 6ES72881SR40-0AA2：
S7-200 SMART, CPU SR40, AC/DC/RELAIS, 24DI/16DO
SIMATIC S7-200 SMART, CPU SR40, CPU V3.0, AC/DC/Relay, Onboard I/O: 24 DI 24 V DC; 16-DO Relay 2A; Power Supply: AC 85-264 V AC, 47-63 Hz, Program/Data Memory 80 KB, Motion Functions, CAM Support, Gear Function, Web Server Support
SIMATIC S7-200 SMART, CPU SR40, CPU V3.0, AC/DC/Relay, Onboard I/O: 24 DI 24 V DC; 16-DO Relay 2A; Power Supply: AC 85-264 V AC, 47-63 Hz, Program/Data Memory 80 KB, Motion Functions, CAM Support, Gear Function, Web Server Support
| Delivery information | |
| Export Control Regulations | AL : N / ECCN : EAR99H |
| Factory Production Time | Stock |
| Net Weight (kg) | 0.440 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST72-CN |
| Product Group | 4050 |
| Group Code | R131 |
| Country of origin | China |
| 6ES72881SR200AA1-SR20 | 6ES72881ST200AA1-ST20 | 6ES72881SR300AA1-SR30 |
| 6ES72881ST300AA1-ST30 | 6ES72881SR400AA1-SR40 | 6ES72881ST400AA1-ST40 |
| 6ES72881SR600AA1-SR60 | 6ES72881ST600AA1-ST60 | 6ES72881CR400AA0 |
| V3.0 6ES72881SR400AA2 dual network ports | V3.0 6ES72881S600AA2 dual network ports | V3.0 6ES72881SR600AA2 dual network ports |
| V3.0 6ES72881ST400AA2 dual network ports | 6ES72881CR400AA1 without Ethernet port | 6ES72881CR200AA1 without Ethernet port |
| 6ES72881CR300AA1 No Ethernet port |
6ES7288-0CD10-0AA0 3A |
6ES7288-0ED10-0AA0 5A / 6ES7288-0KD10-0AA0 10A |
Newly launched S7-200 SMART V3.0
- Full range hardware upgrade
- Includes four CPUs: SR 40/60, ST 40/60
- Dual port design: easier device connection
- Dual signal board expansion: flexible adaptation to digital/analog signal modules, stronger expansion capability
- Expansion module added: supports 8 expansion modules
- Performance Enhancement
- Faster computation speed and larger storage space
- Enhance overall motor control ability
- Support PLCopen motion control programming style
- Supports 5 PTO axes
- Support cam and gear
- Supports 200kHz frequency
- Increased programming functionality
- Support Function Blocks
- Added DB2 user storage area based on programmable variables
- Fully support advanced programming features based on variable name addressing
- Added UDT and array data types
- Information security
- Support encrypted communication with SMART LINE
- User Management and Security Configuration
- HSC enhancement
- Supports up to 8 HSCs
- A/B phase supports 200 kHz, 4x frequency support, up to 800 kHz
6ES7288-1ST60-0AA1 Manualbook PDF (Download)
