SMART PLC

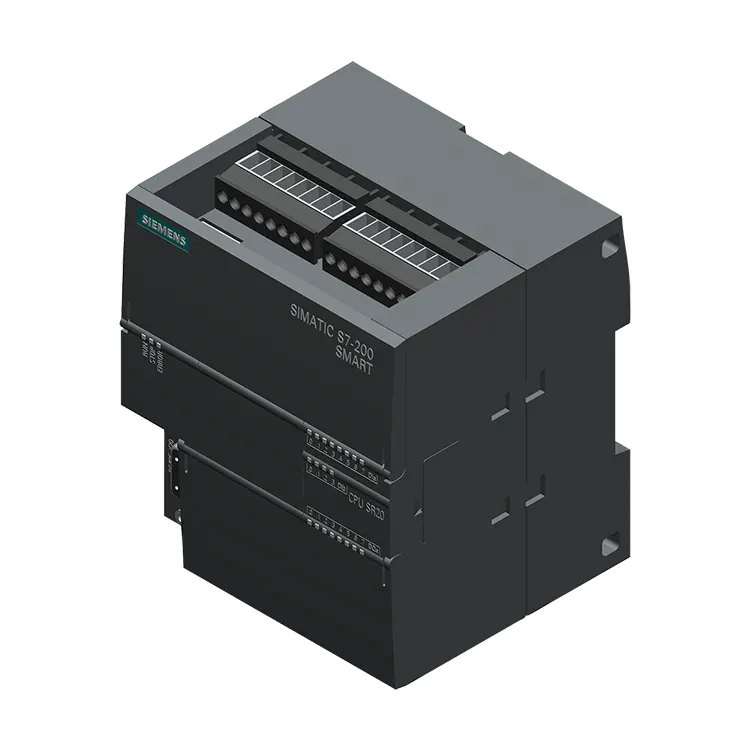

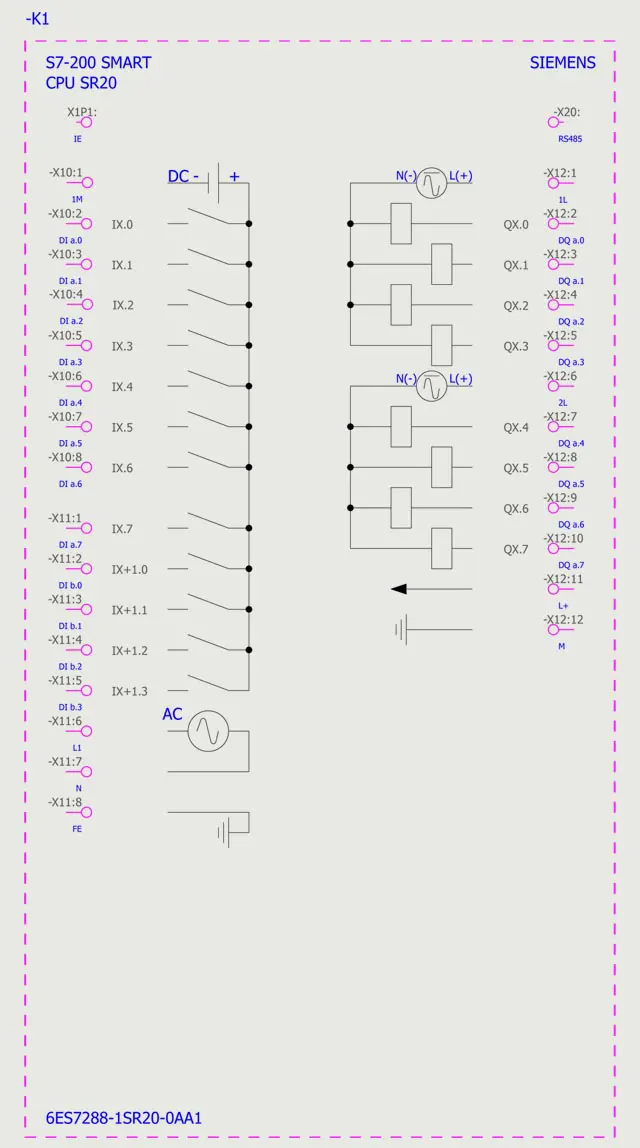

SIMATIC S7-200 SMART, CPU SR20, CPU, AC/DC/relay, onboard I/O: 12 DI 24 V DC; 8 DQ relay 2A; power supply: AC 85 - 264 V AC at 47-63 Hz, 77 to 138 V DC program/data memory 20 KB.
A smarter and more economical controller:
High performance, high integration, and simplicity, SIMATIC S7-200 SMART is a cost-effective small PLC product tailored by Siemens for Chinese customers.
The new S7-200 SMART brings two different types of CPU modules, standard and economy, to fully meet the various needs of different industries, customers, and devices. As an expandable CPU module, the standard model can meet applications with large demands for I/O scale and complex logic control; The economical CPU module directly meets relatively simple control requirements through a single machine body.

S7-200 Smart Series:

Newly launched S7-200 SMART V3.0

• Full range hardware upgrade
  • Includes four CPUs: SR 40/60, ST 40/60
  • Dual port design: easier device connection
  • Dual signal board expansion: flexible adaptation to digital/analog signal modules, stronger expansion capability
  • Expansion module added: supports 8 expansion modules


• Performance Enhancement
  • Faster computation speed and larger storage space
  • Enhance overall motor control ability
  • Support PLCopen motion control programming style
  • Supports 5 PTO axes
  • Support cam and gear
  • Supports 200kHz frequency

• Increased programming functionality
  • Support Function Blocks
  • Added DB2 user storage area based on programmable variables
  • Fully support advanced programming features based on variable name addressing
  • Added UDT and array data types
• Information security
  • Support encrypted communication with SMART LINE
  • User Management and Security Configuration
• HSC enhancement
  • Supports up to 8 HSCs
  • A/B phase supports 200 kHz, 4x frequency support, up to 800 kHz

6ES7288-1SR20-0AA1 Manualbook PDF (Download)
