Siemens ET200PRO Interface Modules 6ES7154-4AB10-0AB0/6ES7154-8AB01-0AB0

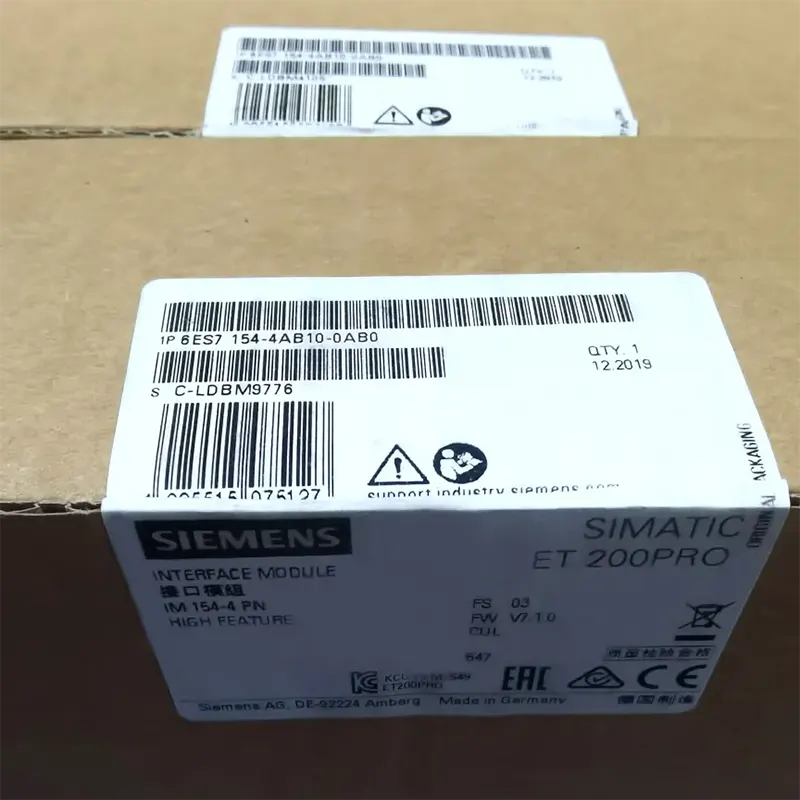

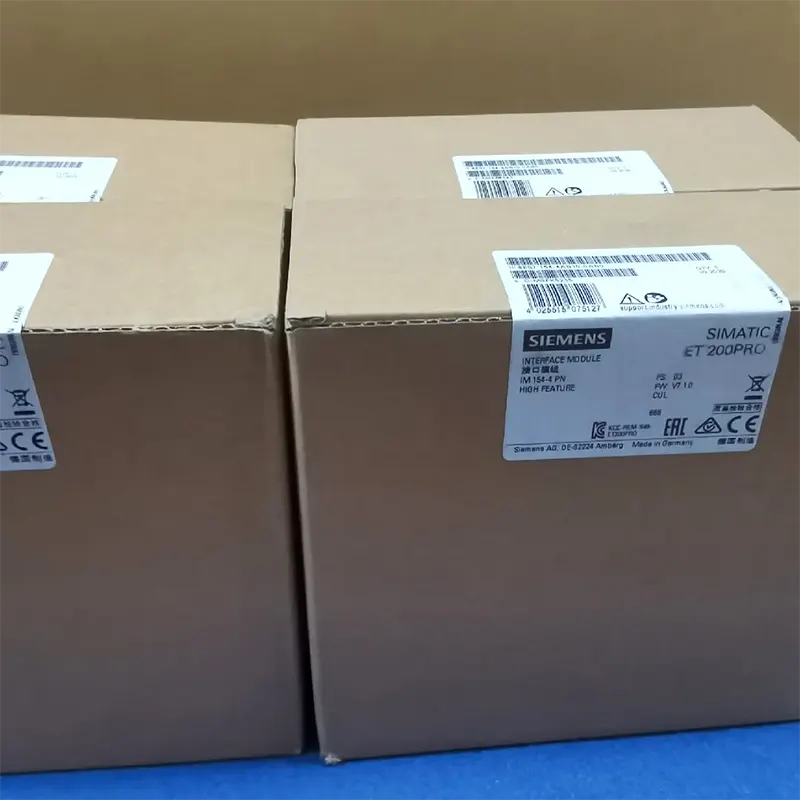

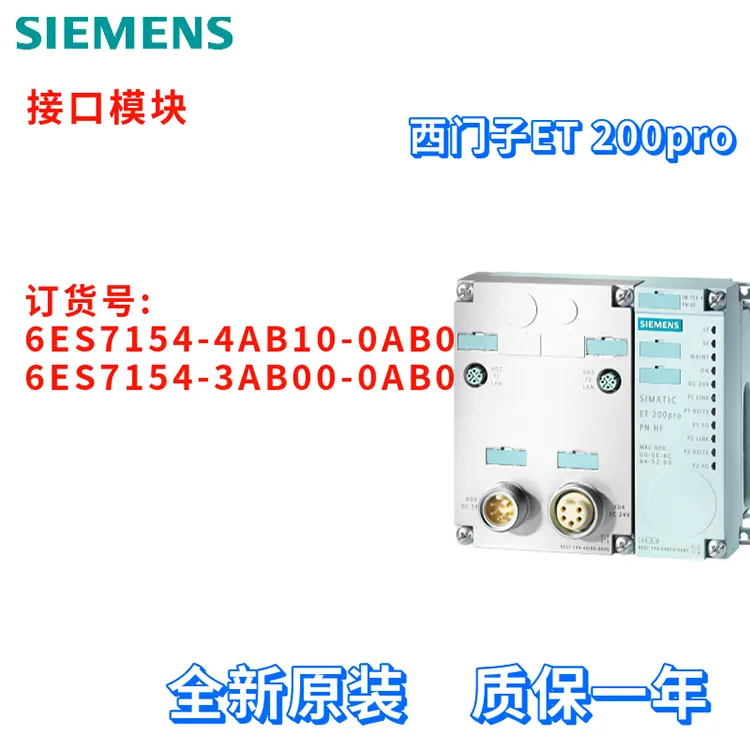

Interface Modules (IM) 6ES7154-4AB10-0AB0
- PROFINET Interface Modules
- 6ES7154-4AB10-0AB0: Supports PROFINET protocol, compatible with S7-1500 PLC, ideal for high-speed networked control.
- 6ES7154-3AB00-0AB0: High-performance PROFIBUS DP interface module with integrated address selector and termination resistor.
- PROFIBUS Interface Modules
- 6ES7194-4AC00-0AA0: Dedicated to PROFIBUS DP, supports direct connection and hot-swappable functionality.
*6ES7154-4AB10-0AB0
*6ES7154-8AB10-0AB0

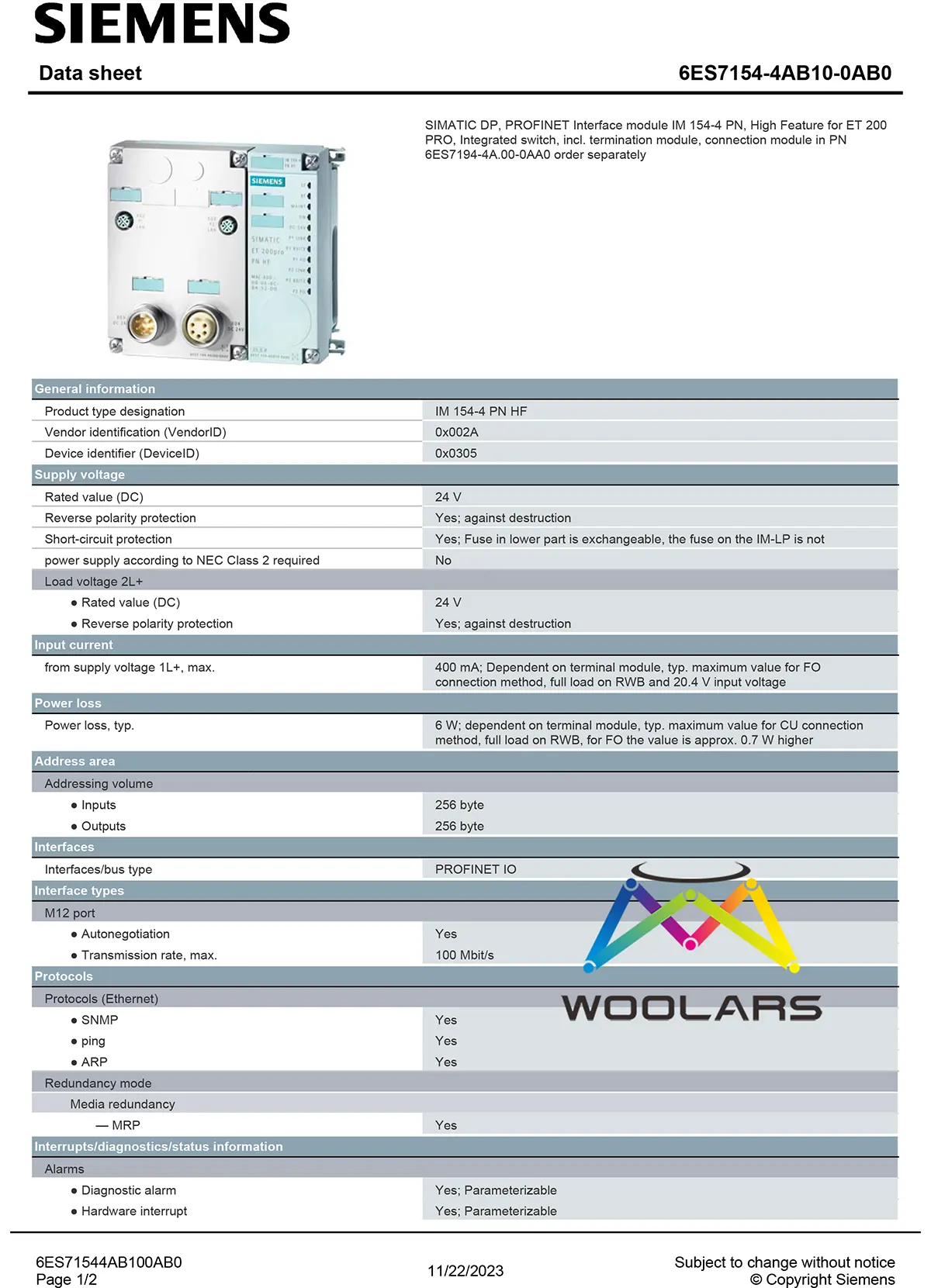

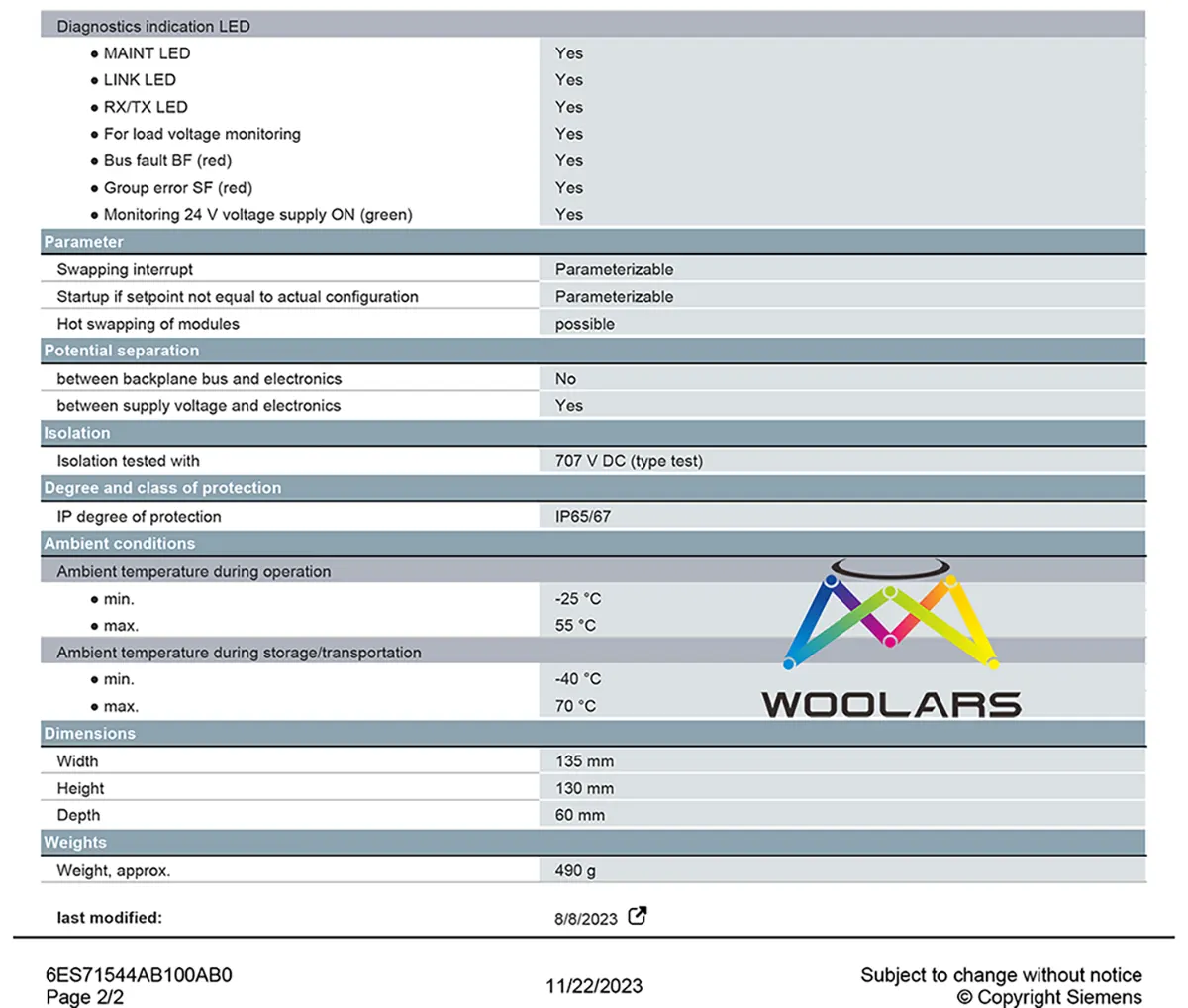

*6ES71544AB100AB0 Components
Siemens ET200PRO Series 6ES7154-4AB10-0AB0: High-End Distributed I/O System for Industrial Automation
The ET200PRO series is a high-performance distributed I/O system designed for harsh industrial environments (e.g., high temperatures, dust, humidity) with IP65/67 protection ratings.
Overview of Other ET200PRO Models:
1. Power Modules (PM)
- Standard Power Modules
- 6ES7148-4CA00-0AA0: 24V DC power supply, 16W output, suitable for basic load requirements.
- 6ES7194-4BD00-0AA0: Power connection module compatible with PM-E templates, featuring hot-swappable capability.
2. Electronic Modules (EM)
- Digital Input/Output Modules
- 6ES7141-4BF00-0AA0: 16-channel digital input module for switch signal acquisition.
- 6ES7141-4BH00-0AA0: 16-channel digital input module with channel-level diagnostics.
- Analog Input/Output Modules
- 6ES7134-4GB01-0AB0 (ET200S-compatible): 2-channel analog input module supporting 4-20mA signals.
- 6ES7135-6HD00-0BA1 (ET200S-compatible): 4-channel analog output module for temperature/pressure control.
- Electronic Connection Modules
- 6ES7194-4CB00-0AA0: Supports 24V DC input/output for expanding I/O points.
3. CPU Modules
- High-Performance CPUs
- 6ES7516-2PN00-0AB0: Integrated PROFINET interface, supports complex control logic and high-speed communication.
- 6ES7154-8AB01-0AB0: Dedicated CPU module for ET200PRO, compatible with S7-1500 architecture.
4. Other Key Modules
- CPU Connection Modules
- 6ES7194-4AP00-0AA0 / 6ES7194-4AN00-0AA0: Enables seamless integration between S7-1500 PLC and ET200PRO systems.
- Motor Starter Modules
- Direct starters and reversible starters: Support motors up to 5.5kW, with built-in protection, eliminating the need for control cabinets.
Core Advantages of 6ES7154-4AB10-0AB0 (ET200PRO Series)
- Protection: IP65/67 rating allows direct machine-surface installation without control cabinets.
- Communication: Supports PROFINET/PROFIBUS DP with speeds up to 12 Mbit/s.
- Scalability: Modular design with hot-swappable and online configuration capabilities.
- Diagnostics: Channel-level diagnostics and predictive fault warnings to minimize downtime.
