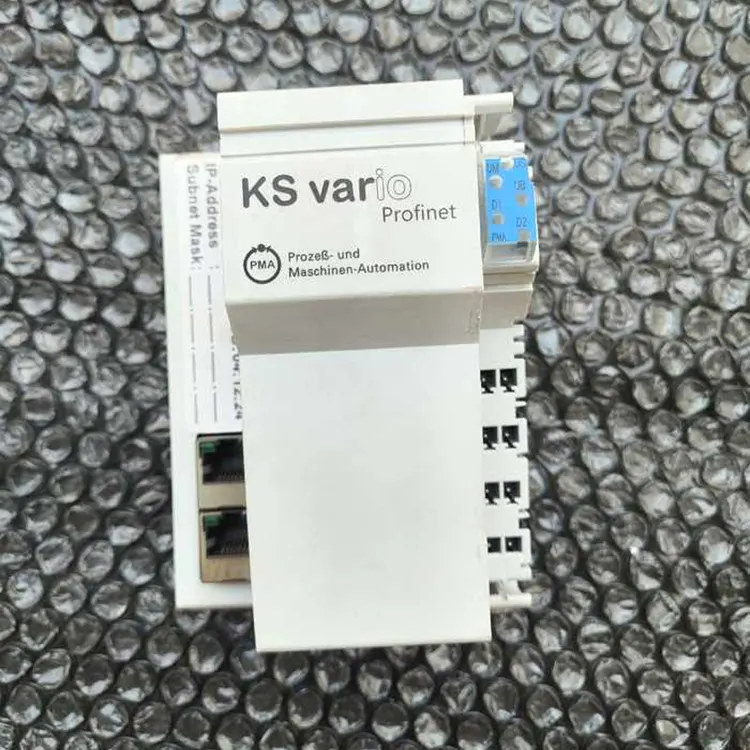

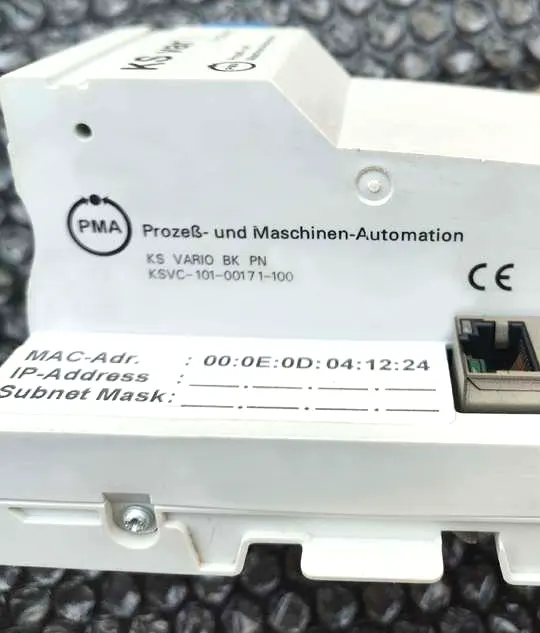

KS VARIO KSVC-101-00171-100
A multifunctional controller can perform the functions of one or more process controllers and has options to control other auxiliary technologies. Multi loop controllers provide an effective solution for applications that require simultaneous regulation of multiple loops.
Related models :
1. KSVC-101-00171-100
2. KSVC-104-20331-U00
3. KSVC-103-02221-U00
4. KSVC-101-00121-U00
5. KSVC-101-00111-U00
6. KSVC-105-00001-U00
KSVC-101-00171-100 Control functions
All conventional control modes including master/slave andvalve motor control are selectable per channel. Two self-tuningoptions are available for determining the best control parameters: during start-up or at setpoint. Individual sampling rates starting at 100 ms are adjustable for each channel.
Controller modules
- 4, 6 or 8 analog inputs
- Thermocouples or resistive sensors
- Up to 8 outputs, 24 VDC, 70 mA
- Integrated heating current monitor
- Expandable up to 30 control zones
KSVC-101-00171-100 Comprehensive communication options
Bus couplers connect the I/O systems to all established field bus systems: ProfiNet, Ethernet IP, Ethernet TCP/IP, Profibus, CANopen, DeviceNet, Modbus.
Demand-oriented expansion

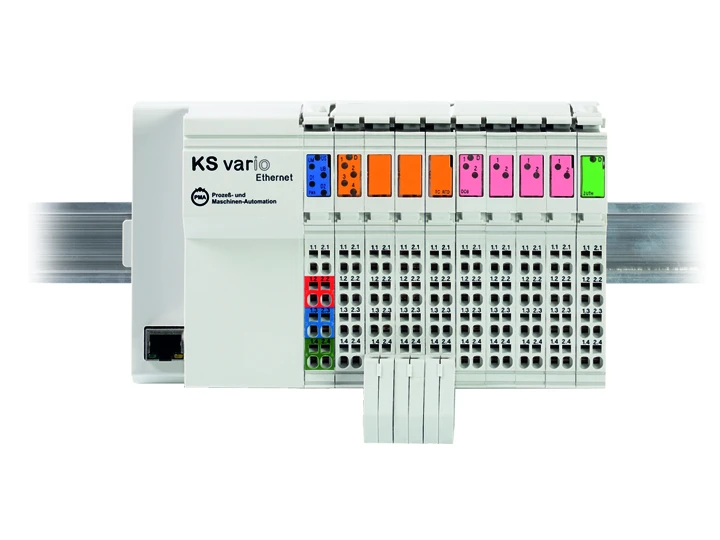

Simply by plugging additional I/O modules into the system, a finely graduated expansion up to 30 control loops is possible.
KSVC-101-00171-100 Additional functions
Several special functions such as controlled start-up for plastics processing machines are standard features of the basic version. Comprehensive heating current monitoring functions with correction for mains voltage variations (perphase), and the direct connection of strain gauge pressure sensors are just two of many other features.
BlueControl® Engineering Tool
BlueControl® is a powerful engineering tool for controller and system configuration. It combines clear operating functions with visualization and monitoring. Moreover, the tool provides a simulation of the entire control loop with selectable process responses.
